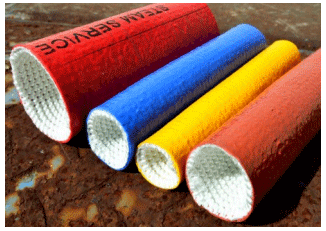

PYROTEX KNIT FIRESLEEVE

  • Self-extinguishing thick-walled insulating
    sleeve for excellent thermal protection
  • Sheds molten metal splash and resists
  • direct flame impingement
  • Lightweight and highly flexible composite
    protective sleeve- exceptional elasticity
  • Will not melt, burn, or support
    combustion– does not emit toxic smoke
  • Resistant to hydraulic fluids, fuels,
    lubricating oil, and water
  • Extends service life of assemblies and
    provides personnel protection



 Pyrotex Industrial Knit Firesleeve provides a flame and molten splash resistant barrier over top of critical system components in a vast number of industrial applications. Atlantex first manufactures a knit insulating substrate from high-quality, texturized fiberglass, and then coats the textile with our custom-formulated, self-extinguishing silicone polymer. The high-performing silicone layer of Pyrotex Industrial Knit Firesleeve protects hoses, wires, cables, and other components from damage due to direct flame, high heat, and molten metal for use in foundry and industrial applications.Installation of Pyrotex Industrial Knit Firesleeve will provide thermal insulation to keep hot lines hot, and cool components cool, reducing energy costs, heat loss, system damage, and premature wear of components.Pyrotex Industrial Knit Firesleeve provides personnel protection by reducing the surface temperature of hot lines, and the silicone coating can be brightly colored to draw
operator’s attention to potential hazards.Pyrotex Firesleeve withstands continuous exposure up to 500°F and short-term exposure up to 2200°F, is self-extinguishing and will not burn, or support combustion, and does not emit toxic smoke. This  product displays excellent resistance to common industrial, automotive, and marine fluids, and provides lines with good protection against mechanical wear.
Working Temperature:
 ° F ° C
Continuous: 500 260
Short term: 2200 1200
Material Composition
 Accreditations
Highly texturized E-Glass fiber Meets UL 94 HB Requirements
Tightly knitted insulating substrate Meets UL 94V-0 Requirements
High-temperature Silicone polymer Private brand printing services
Various colored coatings available REACh & RoHS compliant
Bulk lengths available to reduce scrap
Extensive stock for short lead times
Characteristics
Self-extinguishing thick-walled insulating sleeve for excellent thermal protection
Sheds molten metal splash and resists direct flame impingement
Lightweight and highly flexible composite protective sleeve-,exceptional elasticity
Will not melt, burn, or support combustion- does not emit toxic smoke
Resistant to hydraulic fluids, fuels, lubricating oil, and water
Extends service life of assemblies and provides personnel protection
Availability
Pyrotex Knit is a stock product, allowing for a fast turnaround time
Bulk lengths available for scrap minimization
Firesleeve is supplied in 50 ft. coils and 100 ft. boxes standard
Available in diameters from 1/4″ (6mm) to 4″ (102mm)
Available in standard RIO, other colors are available upon request
Atlantex Available Colors*: Replace “-##” in part number with:
-10 Red Iron Oxide (RIO)
-20 Aluminized
-30 Black
-50 Yellow
-60 Blue
-70 Red
-80 Green
Pyrotex Industrial Knit Firesleeve – Part Numbers
Sleeve ID** Standard Lengths Part Numbers
1/4″ 6 mm 50 ft. coils or 100 ft. boxes PT04100-##
5/16″ 8 mm 50 ft. coils or 100 ft. boxes PT05100-##
3/8″ 10 mm 50 ft. coils or 100 ft. boxes PT06100-##
7/16″ 11 mm 50 ft. coils or 100 ft. boxes PT07100-##
1/2″ 13 mm 50 ft. coils or 100 ft. boxes PT08100-##
9/16″ 14 mm 50 ft. coils or 100 ft. boxes PT09100-##
5/8″ 16 mm 50 ft. coils or 100 ft. boxes PT10100-##
11/16″ 17 mm 50 ft. coils or 100 ft. boxes PT11100-##
3/4″ 19 mm 50 ft. coils or 100 ft. boxes PT12100-##
7/8″ 22 mm 50 ft. coils or 100 ft. boxes PT14100-##
1″ 25 mm 50 ft. coils or 100 ft. boxes PT16100-##
1-1/8″ 29 mm 50 ft. coils or 100 ft. boxes PT18100-##
1-1/4″ 32 mm 50 ft. coils or 100 ft. boxes PT20100-##
1-3/8″ 35 mm 50 ft. coils or 100 ft. boxes PT22100-##
1-1/2″ 38 mm 50 ft. coils or 100 ft. boxes PT24100-##
1-5/8″ 41 mm 50 ft. coils or 100 ft. boxes PT26100-##
1-3/4″ 44 mm 50 ft. coils or 100 ft. boxes PT28100-##
1-7/8″ 48 mm 50 ft. coils or 100 ft. boxes PT30100-##
2″ 51 mm 50 ft. coils or 100 ft. boxes PT32100-##
2-1/8″ 54 mm 50 ft. coils or 100 ft. boxes PT34100-##
2-1/4″ 57 mm 50 ft. coils or 100 ft. boxes PT36100-##
2-3/8″ 60 mm 50 ft. coils or 100 ft. boxes PT38100-##
2-1/2″ 64 mm 50 ft. coils or 100 ft. boxes PT40100-##
2-5/8″ 67 mm 50 ft. coils or 100 ft. boxes PT42100-##
2-3/4″ 70 mm 50 ft. coils or 100 ft. boxes PT44100-##
2-7/8″ 73 mm 50 ft. coils or 100 ft. boxes PT46100-##
3″ 76 mm 50 ft. coils or 100 ft. boxes PT48100-##
3-1/4″ 83 mm 50 ft. coils or 100 ft. boxes PT52100-##
3-1/2″ 89 mm 50 ft. coils or 100 ft. boxes PT56100-##
3-3/4″ 95 mm 50 ft. coils or 100 ft. boxes PT60100-##
4″ 102 mm 50 ft. coils or 100 ft. boxes PT64100-##
