T-Rex (Roughbore)

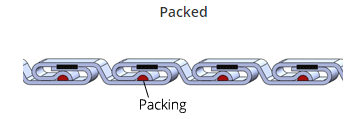

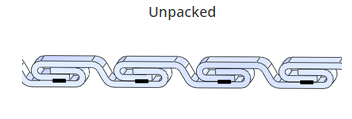

T-REX™ (Roughbore) is Hose Master’s torque-resistant stripwound metal hose with enhanced sealability. T-Rex™ provides resistance to twisting, unwinding, and metal strip flare-up when cut.
| Inside Dia. (in.) | RX 15 __ __ (GS,SS,16,20) |
RX 18 __ __ (GS,SS,16,20) |
RX 25 __ __ (GS,SS,20) |
|||
|---|---|---|---|---|---|---|
| Weight per foot (lbs.) |
Min. Bend Radius (in.) |
Weight per foot (lbs.) |
Min. Bend Radius (in.) |
Weight per foot (lbs.) |
Min. Bend Radius (in.) |
|
| 1 1/2″ | 0.7 | 6 | 0.9 | 6 | ||
| 2″ | 1.0 | 8 | 1.1 | 8 | ||
| 2 1/2″ | 1.2 | 10 | 1.4 | 10 | ||
| 3″ | 1.4 | 12 | 1.6 | 12 | 2.5 | 13 |
| 3 1/2″ | 1.6 | 14 | 1.9 | 14 | 2.8 | 15 |
| 4″ | 1.8 | 16 | 2.2 | 16 | 3.2 | 17 |
| 4 1/2″ | 2.0 | 17 | 2.4 | 17 | 3.6 | 19 |
| 5″ | 2.2 | 19 | 2.7 | 19 | 4.0 | 21 |
| 6″ | 2.7 | 23 | 3.2 | 23 | 4.7 | 25 |
| 7″ | 3.1 | 27 | 3.7 | 27 | 5.5 | 29 |
| 8″ | 3.5 | 30 | 4.2 | 30 | 6.2 | 33 |
| 9″ | 3.9 | 34 | 4.7 | 34 | 7.0 | 37 |
| 10″ | 4.4 | 38 | 5.2 | 38 | 7.7 | 41 |
| 11″ | 5.7 | 42 | 8.5 | 45 | ||
| 12″ | 6.2 | 45 | 9.3 | 49 | ||
| 13″ | 6.7 | 49 | 10.0 | 53 | ||
| 14″ | 7.2 | 53 | 10.8 | 56 | ||
| 15″ | 7.7 | 56 | 11.5 | 60 | ||
| 16″ | 8.2 | 60 | 12.3 | 64 | ||
