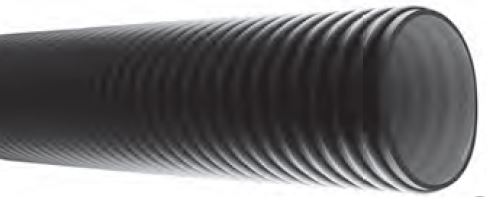

ARVAC™ SW MH Abrasive / Corrosive Hose

APPLICATION: Heavy-duty abrasion-resistant suction hose used for a variety of abrasive material-handling applications, including the transfer of sand, gravel, cement, fly ash, glass, metals, plastic pellets, fertilizers, rock salts and slurries. Static wire for static dissipation.

CONSTRUCTION TUBE: Higher-temperature urethane

COVER: Static-dissipating thermoplastic alloyed blend of nitrile, polyurethane and PVC

REINFORCEMENT: Rigid high-density PVC helix

TEMPERATURE: -40 ºF to 158 ºF (-40 ºC to 70 ºC)

COUPLINGS: Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

BRANDING: Not branded

I.D.

Nom. O.D.

Total Width

Length

Bend Radius

Max. Working Pressure
1 1/2 in38.10 mm 1.870 in47.40 mm 1.870 in47.40 mm 100.000 ft 3.000 in76.00 mm 40.0 psi0.28 MPa
2 in50.80 mm 2.460 in62.50 mm 2.460 in62.50 mm 100.000 ft 2.500 in63.00 mm 40.0 psi0.28 MPa
2 1/2 in63.50 mm 3.030 in77.00 mm 3.030 in77.00 mm 100.000 ft 4.000 in101.00 mm 35.0 psi0.24 MPa
3 in76.20 mm 3.600 in91.50 mm 3.600 in91.50 mm 100.000 ft 6.000 in152.00 mm 30.0 psi0.21 MPa
4 in101.60 mm 4.740 in120.50 mm 4.740 in120.50 mm 100.000 ft 7.000 in177.00 mm 30.0 psi0.21 MPa
5 in127.00 mm 5.810 in147.50 mm 5.810 in147.50 mm 100.000 ft 8.000 in203.00 mm 30.0 psi0.21 MPa
6 in152.40 mm 6.890 in175.00 mm 6.890 in175.00 mm 100.000 ft 8.000 in203.00 mm 25.0 psi0.17 MPa
8 in203.20 mm 9.220 in234.20 mm 9.220 in234.20 mm 50.000 ft 30.000 in762.00 mm 20.0 psi0.14 MPa
8 in203.20 mm 9.220 in234.20 mm 9.220 in234.20 mm 20.000 ft 30.000 in762.00 mm 20.0 psi0.14 MPa
10 in254.00 mm 11.210 in284.70 mm 11.210 in284.70 mm 20.000 ft 45.000 in1143.00 mm 20.0 psi0.14 MPa
