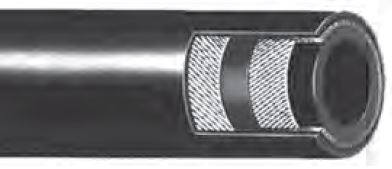

PLICORD® BLAST (2 Ply) Abrasive / Corrosive Hose

APPLICATION: Heavy-duty hose for steel shot or sand blasting in cleaning or finishing metal, stone, glass or other surfaces.

CONSTRUCTION TUBE: CHEMITUF(compound)® synthetic rubber (static dissipating/static conductive)

COVER: Black SBR(compound)® synthetic rubber (wrapped impression)

REINFORCEMENT: Spiral-plied synthetic fabric

TEMPERATURE: -25 ºF to 180 ºF (-32 ºC to 82 ºC)

COUPLINGS: Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

BRANDING (SPIRAL): Example: Continental Contitech Plicord® Blast 150 psi WP.

I.D.

Nom. O.D.

Total Width

Length

Max. Working Pressure

Weight
1 in25.40 mm 1.880 in47.80 mm 1.880 in47.80 mm 50.000 ft 150.0 psi1.03 MPa 1.050 lb/ft1.56 kg/m
1 in25.40 mm 1.880 in47.80 mm 1.880 in47.80 mm 400.000 ft 150.0 psi1.03 MPa 1.050 lb/ft1.56 kg/m
1 in25.40 mm 1.880 in47.80 mm 1.880 in47.80 mm 400.000 ft 150.0 psi1.03 MPa 1.050 lb/ft1.56 kg/m
1 1/4 in31.80 mm 2.160 in54.90 mm 2.160 in54.90 mm 50.000 ft 150.0 psi1.03 MPa 1.260 lb/ft1.88 kg/m
1 1/4 in31.80 mm 2.160 in54.90 mm 2.160 in54.90 mm 400.000 ft 150.0 psi1.03 MPa 1.260 lb/ft1.88 kg/m
1 1/4 in31.80 mm 2.160 in54.90 mm 2.160 in54.90 mm 400.000 ft 150.0 psi1.03 MPa 1.260 lb/ft1.88 kg/m
1 1/2 in38.10 mm 2.380 in60.50 mm 2.380 in60.50 mm 50.000 ft 150.0 psi1.03 MPa 1.420 lb/ft2.11 kg/m
1 1/2 in38.10 mm 2.380 in60.50 mm 2.380 in60.50 mm 375.000 ft 150.0 psi1.03 MPa 1.420 lb/ft2.11 kg/m
1 1/2 in38.10 mm 2.380 in60.50 mm 2.380 in60.50 mm 400.000 ft 150.0 psi1.03 MPa 1.420 lb/ft2.11 kg/m
1 1/2 in38.10 mm 2.380 in60.50 mm 2.380 in60.50 mm 400.000 ft 150.0 psi1.03 MPa 1.420 lb/ft2.11 kg/m
1 1/2 in38.10 mm 2.380 in60.50 mm 2.380 in60.50 mm 400.000 ft 150.0 psi1.03 MPa 1.420 lb/ft2.11 kg/m
1 1/2 in38.10 mm 2.380 in60.50 mm 2.380 in60.50 mm 3.000 ft 150.0 psi1.03 MPa 1.420 lb/ft2.11 kg/m
2 in50.80 mm 2.860 in72.60 mm 2.860 in72.60 mm 400.000 ft 150.0 psi1.03 MPa 1.700 lb/ft2.53 kg/m
2 in50.80 mm 2.860 in72.60 mm 2.860 in72.60 mm 400.000 ft 150.0 psi1.03 MPa 1.700 lb/ft2.53 kg/m
1/2 in12.70 mm 1.130 in28.70 mm 1.130 in28.70 mm 50.000 ft 150.0 psi1.03 MPa 0.410 lb/ft0.61 kg/m
1/2 in12.70 mm 1.130 in28.70 mm 1.130 in28.70 mm 375.000 ft 150.0 psi1.03 MPa 0.410 lb/ft0.61 kg/m
1/2 in12.70 mm 1.130 in28.70 mm 1.130 in28.70 mm 400.000 ft 150.0 psi1.03 MPa 0.410 lb/ft0.61 kg/m
3/4 in19.10 mm 1.480 in37.60 mm 1.480 in37.6 mm 50.000 ft 150.0 psi1.03 MPa 0.680 lb/ft1.01 kg/m
3/4 in19.10 mm 1.480 in37.60 mm 1.480 in37.6 mm 400.000 ft 150.0 psi1.03 MPa 0.680 lb/ft1.01 kg/m
3/4 in19.10 mm 1.480 in37.60 mm 1.480 in37.6 mm 400.000 ft 150.0 psi1.03 MPa 0.680 lb/ft1.01 kg/m
