APPLICATION: For welding service and its meets RMA/CGA Standards for Grade T welding hose. Nonconductive.
CONSTRUCTION TUBE: Wingprene® synthetic rubber compatible with all common welding fuel gases
COVER: Chemivic™ synthetic rubber smooth cover
REINFORCEMENT: Spiral synthetic yarn
TEMPERATURE: -40 ºF to 120 ºF (-40 ºC to 49 ºC)
COUPLINGS: Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

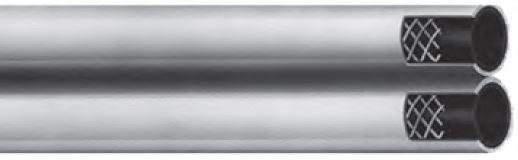

BRANDING: Example: Made in USA. Continental Contitech Oxygen Type VD, Grade T – AU TWIN-LINE®.
| 1/4 in6.40 mm |
0.530 in13.50 mm |
0.530 in13.5 mm |
5.000 ft |
Green & Red |
0.180 lb/ft0.27 kg/m |
| 1/4 in6.40 mm |
0.530 in13.50 mm |
0.530 in13.5 mm |
1.000 ft |
Green & Red |
0.180 lb/ft0.27 kg/m |
| 1/4 in6.40 mm |
0.530 in13.50 mm |
0.530 in13.5 mm |
500.000 ft |
Green & Red |
0.180 lb/ft0.27 kg/m |
| 3/8 in9.50 mm |
0.660 in16.80 mm |
0.660 in16.8 mm |
25.000 ft |
Green & Red |
0.260 lb/ft0.39 kg/m |
| 3/8 in9.50 mm |
0.660 in16.80 mm |
0.660 in16.8 mm |
600.000 ft |
Green & Red |
0.260 lb/ft0.39 kg/m |
| 3/16 in4.80 mm |
0.440 in11.20 mm |
0.440 in11.20 mm |
500.000 ft |
Green & Red |
0.130 lb/ft0.19 kg/m |
| 5/16 in7.90 mm |
0.590 in15.00 mm |
0.590 in15.0 mm |
500.000 ft |
Green & Red |
0.220 lb/ft0.33 kg/m |
