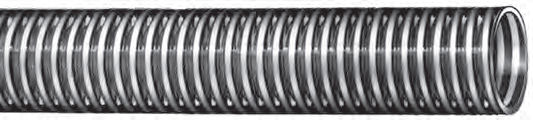

NUTRIFLO® Suction & Discharge Hose

APPLICATION: For handling almost every type of dry bulk food material or liquid in gravity flow and vacuum service. Nutriflo conforms to USDA Meat and Poultry, 3-A Sanitary, and FDA Standards and is used for the transmission of raw and pasteurized milk and other high water content dairy items.

CONSTRUCTION TUBE: Clear Pliovic® (FDA, 3-A, USDA compliant), NSF-61

COVER: Clear Pliovic

REINFORCEMENT: White or Clear high-density Pliovic® helix

TEMPERATURE: -15 ºF to 158 ºF (-26 ºC to 70 ºC)

COUPLINGS: Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

BRANDING: Not branded

I.D.

Nom. O.D.

Length

Color

Max. Working Pressure

Weight
3/4 in19.10 mm 0.990 in25.20 mm 50.000 ft White 120.0 psi0.83 MPa 0.180 lb/ft0.27 kg/m
3/4 in19.10 mm 0.990 in25.20 mm 100.000 ft White 120.0 psi0.83 MPa 0.180 lb/ft0.27 kg/m
1 in25.40 mm 1.240 in31.50 mm 100.000 ft White 106.0 psi0.73 MPa 0.260 lb/ft0.39 kg/m
1 1/4 in31.80 mm 1.550 in39.40 mm 100.000 ft White 99.0 psi0.68 MPa 0.360 lb/ft0.54 kg/m
1 1/2 in38.10 mm 1.780 in45.20 mm 100.000 ft White 89.0 psi0.61 MPa 0.430 lb/ft0.64 kg/m
2 in50.80 mm 2.370 in60.20 mm 100.000 ft White 79.0 psi0.54 MPa 0.670 lb/ft1.00 kg/m
2 1/2 in63.50 mm 2.890 in73.40 mm 100.000 ft White 65.0 psi0.45 MPa 0.890 lb/ft1.32 kg/m
3 in76.20 mm 3.480 in88.40 mm 100.000 ft White 65.0 psi0.45 MPa 1.150 lb/ft1.71 kg/m
4 in101.60 mm 4.500 in114.30 mm 100.000 ft White 55.0 psi0.38 MPa 1.650 lb/ft2.46 kg/m
6 in152.40 mm 6.630 in168.40 mm 100.000 ft White 47.0 psi0.32 MPa 3.390 lb/ft5.04 kg/m
1 in25.40 mm 1.240 in31.50 mm 100.000 ft Clear 106.0 psi0.73 MPa 0.260 lb/ft0.39 kg/m
1 1/4 in31.80 mm 1.550 in39.40 mm 100.000 ft Clear 99.0 psi0.68 MPa 0.360 lb/ft0.54 kg/m
1 1/2 in38.10 mm 1.780 in45.20 mm 100.000 ft Clear 89.0 psi0.61 MPa 0.430 lb/ft0.64 kg/m
2 in50.80 mm 2.370 in60.20 mm 100.000 ft Clear 79.0 psi0.54 MPa 0.670 lb/ft1.00 kg/m
2 1/2 in63.50 mm 2.890 in73.40 mm 100.000 ft Clear 65.0 psi0.45 MPa 0.890 lb/ft1.32 kg/m
3 in76.20 mm 3.480 in88.40 mm 100.000 ft Clear 65.0 psi0.45 MPa 1.150 lb/ft1.71 kg/m
4 in101.60 mm 4.500 in114.30 mm 100.000 ft Clear 55.0 psi0.38 MPa 1.650 lb/ft2.46 kg/m
6 in152.40 mm 6.630 in168.40 mm 100.000 ft Clear 47.0 psi0.32 MPa 3.390 lb/ft5.04 kg/m
