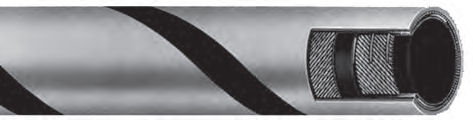

PLICORD® GRAY Food Hose

APPLICATION: A flexible hose for gravity flow, pressure, or suction service transferring edibles from tank truck and in-plant service.

CONSTRUCTION TUBE: White Chemivic™ synthetic rubber (FDA/USDA compliant and conforms to 3-A Sanitary Standard 18-03)

COVER: Gray Chemivic synthetic rubber (wrapped impression)

REINFORCEMENT: Spiral-plied synthetic fabric with Galvanized Wire helix

TEMPERATURE: -25 ºF to 230 ºF (-32 ºC to 110 ºC)

COUPLINGS: Contact fitting manufacturer for proper fitting recommendations and coupling procedure.

BRANDING (SPIRAL): Example: Continental Contitech Plicord® Gray Food; FDA, 3-A, and USDA 150 psi.

I.D.

Nom. O.D.

Length

Color

Max. Working Pressure

Weight
3/4 in19.10 mm 1.200 in30.40 mm 100.000 ft Gray 150.0 psi1.03 MPa 0.470 lb/ft0.69 kg/m
1 in25.40 mm 1.450 in36.70 mm 100.000 ft Gray 150.0 psi1.03 MPa 0.580 lb/ft0.86 kg/m
1 1/2 in38.10 mm 1.970 in50.00 mm 100.000 ft Gray 150.0 psi1.03 MPa 0.850 lb/ft1.26 kg/m
2 in50.80 mm 2.590 in65.80 mm 100.000 ft Gray 150.0 psi1.03 MPa 1.420 lb/ft2.11 kg/m
2 1/2 in63.50 mm 3.090 in78.50 mm 100.000 ft Gray 150.0 psi1.03 MPa 1.770 lb/ft2.63 kg/m
3 in76.20 mm 3.590 in91.20 mm 100.000 ft Gray 150.0 psi1.03 MPa 2.100 lb/ft3.13 kg/m
4 in101.60 mm 4.680 in118.90 mm 100.000 ft Gray 150.0 psi1.03 MPa 3.190 lb/ft4.75 kg/m
1 in25.40 mm 1.450 in36.70 mm 400.000 ft Gray 150.0 psi1.03 MPa 0.580 lb/ft0.86 kg/m
1 1/2 in38.10 mm 1.970 in50.00 mm 300.000 ft Gray 150.0 psi1.03 MPa 0.850 lb/ft1.26 kg/m
