Push-On Hose

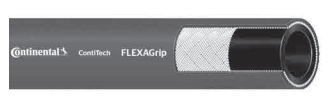

FLEXAGrip™
|
|
| Application For use with push-on fittings at maximum working pressures of 400 psi.* For low-pressure hydraulic pneumatic systems such as robotics, shop air systems, and general industrial, maintenance and automotive assembly applications. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC. MSHA approved covers. Silicone is not used in the manufacture of this hose.Construction > Tube Chemivic oil- and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance) > Cover MSHA approved black (USMSHA 2G-1C-14C/27. Blue, gray, green, red, white, brown and yellow (USMSHA 2G-1C-14C/28) (For others contact customer service), weather-, abrasionand oil-resistant Carbryn™ rubber, ARPM Class A (High Oil Resistance) > Reinforcement One braided high-strength synthetic yarn laid at an angle for strength and coupling holding abilityTemperature Range -40˚F to 210˚F (-40˚C to 99˚C) |
Packaging 90% one-piece reels up to 1″ 3/16″– 3/4″ – 500′ reels, maximum 3 pieces, 50′ increments 1″ – 450′ reels, maximum 3 pieces, 50′ increments 1¼” – 250’–400′ reels, maximum 3 pieces, 50′ increments 1½” – 150’–300′ reels, maximum 3 pieces, 50′ increments 2″ – 200′ carton, maximum 3 pieces, 50′ increments Coupled assemblies available: 1/4″, 3/8″, 1/2″, and 3/4″ .Branding Example: Gorilla® by Continental ContiTech 1″ (25 .4 mm) 500 psi Made in USA Flame Resistant USMSHA No . 2G-IC-14C/39Couplings Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications . |
| Insta-Grip™ 300
|
|
| Application For use with push-on fittings at working pressures of 300 psi. For low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly applications. Non-conductive, minimum electrical resistance, greater than 1 megohm per inch of hose length at 1000 volts DC. MSHA approved covers. Construction > Tube Silicone is not used in the manufacturing of this hose. Chemivic oil- and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance) > Cover Black, green, blue, red, yellow and gray (for others contact customer service); MSHA approved, weather-, abrasion- and oil-resistant synthetic rubber; ARPM Class B (Medium Oil Resistance). > Reinforcement One braided high-strength synthetic yarn laid at the most effective angle for maximum strength and coupling holding abilityTemperature Range -40˚F to 210˚F (-40˚C to 99˚C) |
Packaging 500′ reels, maximum 4 pieces, 10′ minimumBranding Example: Insta-Grip™ 1/4″ 300 psi WP Flame-resistant USMSHA 2G-IC-14C/33 Made in USA Continental ContiTech Couplings Contact fitting manufacturer for proper fitting recommendation and coupling procedure. |
| Insta-Grip™ 250
|
|
| Application For industrial service with push-on fittings at working pressures of 250 psi. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.Construction > Tube Chemivic oil- and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance) > Cover Red, black, or green Chemivic, ARPM Class B (Medium Oil Resistance) > Reinforcement Spiral aramid yarnTemperature Range -20˚F to 210˚F (-29˚C to 99˚C) |
Packaging 500′ reels, maximum 3 pieces, 50′ incrementsBranding Example: Insta-Grip™ Non-conductive 3/8″ (9.5 mm) 250 psi WP Made in USA Continental ContiTechCouplings Contact fitting manufacturer for proper fitting recommendation and coupling procedure. |
| Insta-Grip™ HT 300
|
|
| Application For lubricating and fuel oils, air and water . Not recommended for applications involving impulse movements or air brake applications . For use with push-on fittings at working pressuresup to 300 psi .Construction > Tube Black CPE rubber, ARPM Class B (Medium Oil Resistance) > Cover Blue CPE rubber, ARPM Class B (Medium Oil Reisistance) > Reinforcement One synthetic textile braid |
Temperature Range Petroleum-based hydraulic fluids: -40˚F to 300˚F (-40˚C to 150˚C) Water and air: -40˚F to 190˚F (-40˚C to 88˚C)Branding Example: Continental ContiTech Insta-Grip™ HT 3/4″ 300 psi WP Made in USAFittings All fittings compatible with the Insta-Grip™ HT 300 hose family are listed in Section 7 of the Hydraulic Catalog |
| Insta-Grip™ TC
|
|
| Application For low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance andautomotive assembly applications.Construction > Tube Chemivic oil- and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance) > Cover Black, dyed textile braid, mildew- and oil-resistant > Reinforcement One braided high-strength synthetic yarn laid at an angle for strength and coupling holding abilityTemperature Range -40˚F to 210˚F (-40˚C to 99˚C |
Packaging 500′ reels, maximum 4 pieces, 10′ minimum lengthBranding Example: Insta-Grip™ TC 3/8″ 300 psi WP Made in USA Continental ContiTechCouplings Contact fitting manufacturer for proper fitting recommendation and coupling procedure |
 |
|
