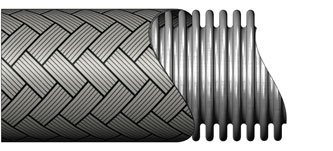

Masterflex


Masterflex is manufactured using the same high quality process used to make Annuflex hose, but the number of corrugations per foot is increased to allow for greater flexibility.
Inside Diameter (in.) Number of Braids (#) Outside Diameter (in.) Static Min. Bend Radius (in.) Dynamic Min. Bend Radius (in.) Maximum Working Pressure (psi) Burst Pressure (psi) Weight Per Foot (lbs.)
1/4″ 0
1
2		 0.42
0.48
0.54		 0.9 3.7 90
1800
2700		 n/a
7233
9100		 0.07
0.14
0.20
3/8″ 0
1
2		 0.65
0.71
0.77		 1.0 4.0 70
1558
2336		 n/a
6230
9345		 0.15
0.25
0.36
1/2″ 0
1
2		 0.77
0.83
0.89		 1.2 4.4 70
1186
1779		 n/a
4743
7115		 0.18
0.32
0.47
5/8″ 0
1
2		 0.96
1.02
1.08		 1.4 5.6 57
1205
1808		 n/a
4820
7230		 0.19
0.37
0.54
3/4″ 0
1
2		 1.16
1.22
1.28		 1.7 6.4 43
898
1347		 n/a
3591
5387		 0.31
0.53
0.74
1″ 0
1
2		 1.47
1.53
1.63		 2.1 7.1 43
718
1077		 n/a
2872
4308		 0.41
0.76
1.11
1 1/4″ 0
1
2		 1.75
1.83
1.91		 2.5 7.9 43
645
968		 n/a
2581
3872		 0.63
1.00
1.37
1 1/2″ 0
1
2		 2.08
2.16
2.24		 3.1 8.7 28
531
797		 n/a
2125
3188		 0.70
1.16
1.63
2″ 0
1
2		 2.61
2.69
2.77		 4.0 10.3 14
449
674		 n/a
1797
2696		 0.88
1.44
1.99
2 1/2″ 0
1
2		 3.40
3.50
3.60		 5.4 12.8 14
417
626		 n/a
1669
2504		 1.36
2.16
2.96
3″ 0
1
2		 3.88
3.98
4.08		 6.3 14.5 14
346
519		 n/a
1384
2076		 1.63
2.50
3.37
4″ 0
1
2		 4.96
5.06
5.16		 7.7 17.4 14
299
448		 n/a
1194
1791		 2.53
3.90
5.29
5″ 0
12		 6.00
6.12
6.24		 10.0 21.9 14
275
412		 n/a
1099
1649		 4.07
5.53
6.99
6″ 0
1
2		 7.01
7.13
7.25		 11.6 25.0 11
210
315		 n/a
839
1259		 4.46
6.34
8.22
