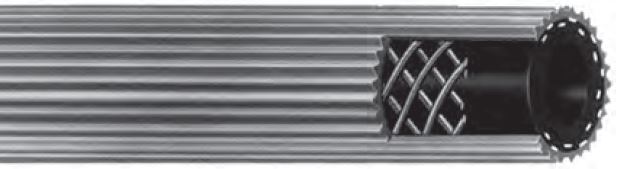

APPLICATION: For welding service and it meets RMA/CGA Standards for Grade R welding hose.
CONSTRUCTION TUBE: EPDM(compound)® synthetic rubber
COVER: EPDM(compound) synthetic rubber ribbed surface
REINFORCEMENT: Spiral synthetic yarn
TEMPERATURE: -40 ºF to 120 ºF (-40 ºC to 49 ºC)
COUPLINGS: Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
BRANDING: Example: Continental Contitech VARIFLEX® Welding Grade R.
Type
|
Special APP Transfer |
Style
|
Special APP Transfer Hose |
Construction Tube
|
Versigard® synthetic rubber |
Cover
|
Versigard synthetic rubber ribbed surface |
Reinforcement
|
Spiral synthetic yarn |
Color
|
Green |
Min. Temperature
|
-40 ºF-40 ºC |
Max. Temperature
|
120 ºF49 ºC |
Max. Working Pressure
|
200.0 psi1.38 MPa |
Brand
|
VARIFLEX® WELDING GRADE R |
Order Code
|
569-592 |
I.D.
|
5/16 in7.90 mm |
Nom. O.D.
|
0.600 in15.10 mm |
Total Width
|
0.600 in15.1 mm |
Length
|
750.000 ft |
Weight
|
0.130 lb/ft0.19 kg/m |
