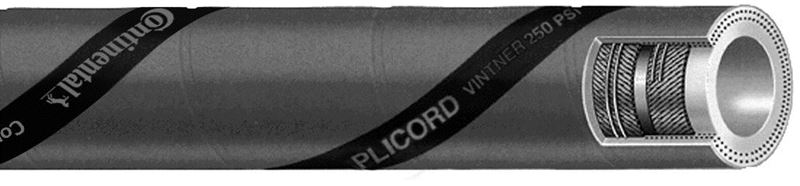

VINTNER™ Food Hose

APPLICATION: For handling in-plant and/or tank truck transfer of wine, beer, potable water and other nonoily, liquid foodstuffs.

CONSTRUCTION TUBE: White Chlorobutyl (FDA/USDA compliant and conforms to 3-A sanitary standard 18-03)

COVER: Gray EPDM(compound)® synthetic rubber (wrapped) / purple branding tape

REINFORCEMENT: Spiral-plied synthetic fabric with Monofilament Helix

TEMPERATURE: -30 ºF to 220 ºF (-34 ºC to 104 ºC)

COUPLINGS: Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

BRANDING (SPIRAL): Example: Continental Contitech Plicord® Vintner™ 250 psi; FDA, 3 – A, and USDA.

I.D. Nom. O.D. Length Color Max. Working Pressure  Length
1 in25.40 mm 1.620 in41.10 mm 100.000 ft Gray 250.0 psi1.72 MPa 0.710 lb/ft1.06 kg/m
1 1/2 in38.10 mm 2.110 in53.60 mm 100.000 ft Gray 250.0 psi1.72 MPa 0.980 lb/ft1.46 kg/m
2 in50.80 mm 2.680 in68.10 mm 50.000 ft Gray 250.0 psi1.72 MPa 1.380 lb/ft2.05 kg/m
2 1/2 in63.50 mm 3.210 in81.50 mm 100.000 ft Gray 250.0 psi1.72 MPa 1.780 lb/ft2.65 kg/m
3 in76.20 mm 3.850 in97.80 mm 50.000 ft Gray 250.0 psi1.72 MPa 2.590 lb/ft3.86 kg/m
2 in50.80 mm 2.680 in68.10 mm 100.000 ft Gray 250.0 psi1.72 MPa 1.380 lb/ft2.05 kg/m
3 in76.20 mm 3.850 in97.80 mm 100.000 ft Gray 250.0 psi1.72 MPa 2.590 lb/ft3.86 kg/m
2 in50.80 mm 2.680 in68.10 mm 200.000 ft Gray 250.0 psi1.72 MPa 1.380 lb/ft2.05 kg/m
1 1/4 in31.75 mm 1.900 in47.50 mm 200.000 ft Gray 250.0 psi1.72 MPa 0.860 lb/ft1.28 kg/m
1 1/2 in38.10 mm 2.110 in53.60 mm 300.000 ft Gray 250.0 psi1.72 MPa 0.980 lb/ft1.46 kg/m
1 1/2 in38.10 mm 2.110 in53.60 mm 150.000 ft Gray 250.0 psi1.72 MPa 0.980 lb/ft1.46 kg/m
1 in25.40 mm 1.620 in41.10 mm 150.000 ft Gray 250.0 psi1.72 MPa 0.710 lb/ft1.06 kg/m
2 in50.80 mm 2.680 in68.10 mm 100.000 ft Gray 250.0 psi1.72 MPa 1.380 lb/ft2.05 kg/m
2 in50.80 mm 2.680 in68.10 mm 400.000 ft Gray 250.0 psi1.72 MPa 1.380 lb/ft2.05 kg/m
